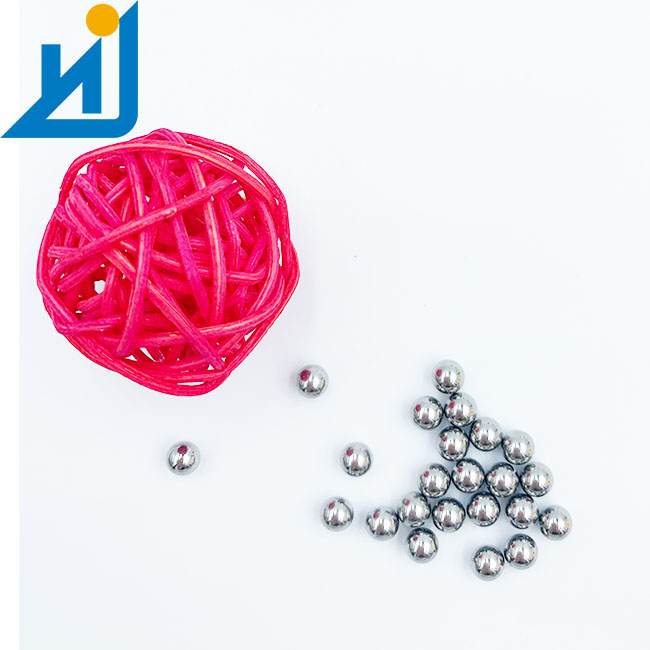

High Carbon Chrome Metal Balls Bulk Bearing Steel Balls Bearing Balls 3mm 15mm 16mm 11mm
Chrome steel ball ,or high carbon chrome steel ball,is actually an alloy steel ball which owes
its enhanced properties to the presence of lager proportions of special alloying elements
such as chrominum,manganese and silicon than are ordinarily present in carbon steel .
It is a universal material for many applications,such as,ball and roller bearing industry
and for a varity of automobile applications,Due to through hardening,it has an excellent surface quality ,
superior wear resistance ,hard hardness and high load bearing capacity.
Features
1.Materials: AISI52100, GCr15, SUJ2, GCr15SiMn, 100Cr6 and so on
2.Grades: G40, G60, G100, G200, G500
3.Size: 0.3mm--20m
4.Complying with GB, ASTM, DIN, JIS standards
5.Use: Hardware, bearing, machinery, guide rail, guide sleeve, grinding compound, polishing,
fine powder, aluminum powder aluminum aluminum paste, decoration, toy domain and so on
6.Packing: plastic bag, export carton, pallet or steel barrel, steel drum;According to customers' requirements
Grade information
| GRADE | Ball Dia. variation | Deviation from spherical form (U) | Surface roughness (U) | lot Dia. variation (U) | Basic Dia. tolerance (U) |
| INCH | (U) |
| 3 | 0.000003 | 0.08 | 0.08 | 0.012 | 0.13 | ±0.75
|
| 5 | 0.000005 | 0.125 | 0.125 | 0.02 | 0.25 | ±1.25
|
| 10 | 0.00001 | 0.25 | 0.25 | 0.025 | 0.5 | ±2.5
|
| 16 | 0.000016 | 0.4 | 0.4 | 0.025 | 0.8 | ±2.5
|
| 24 | 0.000024 | 0.6 | 0.6 | 0.05 | 1.2 | ±2.5
|
| 48 | 0.000048 | 1.2 | 1.2 | 0.08 | 2.4 | ±5
|
| 100 | 0.0001 | 2.5 | 2.5 | 0.125 | 5 | ±12.5
|
| 200 | 0.0002 | 5 | 5 | 0.2 | 10 | ±25
|
| 500 | 0.0005 | 12.5 | 12.5 | - | 25 | ±50
|
| 1000 | 0.001 | 25 | 25 | - | 50 | ±125
|
| 2000 | | 50 | 50 | - | 100 | ±125
|
Material Comparison List
| State | China | Japan | America | Germany | France
|
| Standard | GB | JIS | AISI | DIN | NF
|
| Title | GCr15 | SUJ-2 | 52100 | 100Cr6 | 100C6
|
| Title | GCr15SiMn | SUJ-3 | | 100CrMn6 |
|
Chemical Composition
| Chrome steel | C | Si | Mn | P | S | Ni | Cr |
| AISI
52100 | 0.95
1.1 | 0.15
0.35 | 0.25
0.45 | 0.03
MAX | 0.03
MAX | 0.03
MAX | 1.35
1.65 |
Packing of Steel Balls
About Our Company
Jinnai Stainless Steel Ball Manufacture Co., Ltd is one of famous and professional stainless steel ball factory from china .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and
our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430).
also produce chrome steel ball (AISI52100,100CR6,GCR15),
carbon steel ball(1015,1010,1045,1085),
copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball
and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm.
Welcome to visit our factory and looking forwarder to cooperate with you !
